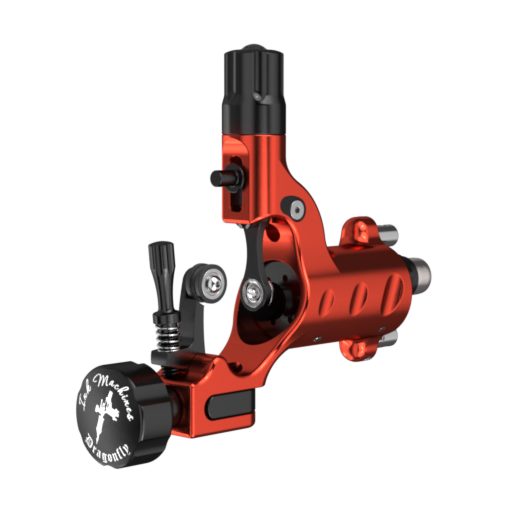

Dragonfly X2

Dragonfly X2
Devilish red

In stock

Usually ships within:
24 Hours

Price:
Price425,00 €

New stronger Swiss X2 motor

Exclusive for the X2 models. Hi-performance motor with 6W mechanical output and high energy efficiency (86%). Optimal for battery operation with the RPS-600. Runs all type of standard and cartridge needles. See manual for more info.

Adjustable stroke lengths

Choose between three stroke lengths. 2.6mm, 3.7mm and 4.5mm with the same eccenter. Delivered with 3.7mm stroke. *Tool kit is needed to adjust the stroke length. See manual for more info.

Easy to convert between standard and cartridge needles.

When using cartridges the Stay up spring must be removed to prevent strain on the motor and to function properly. The X2 version has a lid in the frame that allows quick access to the Stay up spring. Easy to remove and insert when choosing between standard and cartridge needles. See manual for more info.

More stable give adjustment

New Cap with built in damper prevents clatter and excessive noise when using the softer give settings. Allows to use the whole 3 turns adjustment efficiently and without clatter. See manual for more info.

Higher precision and finish

The X2 models have several improvements regarding component materials and precision.

  • Lightweight (80 grams)
  • Silent
  • Low vibrating
  • Ergonomic
  • Don’t need rubberbands
  • Adjustable hitting force
  • Adjustable stroke length
  • Accepts standard grips, tubes and needles
  • Compatible with cartridge needles
  • Both clipcord & RCA connections
  • Works with most power supplies 0-13V
  • Normally stops in upper position
  • No moving components in contact with plastic barrier
  • High durability
  • Wireless ready for RPS-600

Input voltage: 0 - 13 volt DC (max. 13 volt DC)

Power connections: RCA or clipcord (max. clipcord end diam Ø1,6 mm)

Rpm range Stitches / sec: 0 - 8 000 rpm / min 0 - 130 / sec

Stroke length: 2.6, 3.7 and 4.5 mm Adjustable

Suspension stroke: 0 - 2 mm

Max. tube diam: Ø8 mm

Max. needle size: 50 magnum

Weight: 80 grams

Wireless ready: Yes

Dimensions LxBxH: 90 x 21 x 77 mm

Wireless tattooing with the TPS-500

The TPS-500 is our second gen wireless power supply. Designed as a modular system so that charger bay and other accessories can be added to the main unit.
